Single Station Relay Helium Test Equipment In Accordance With IEC 60255

Name: Single Station Relay Helium Test Equipment In Accordance With IEC 60255
Brand: Guangzhou HongCe Equipment Co., Ltd.
SKU: HJ154
Price: 5,000.00 USD
Availability: InStock

Markenbezeichnung:	Hejin
Modellnummer:	HJ154
MOQ:	1 set
Preis:	Verhandlungsfähig
Zahlungsbedingungen:	L/C, T/T
Versorgungsfähigkeit:	30 set per month

Einzelheiten

Produkt-Beschreibung

Einzelheiten

Place of Origin:

china

Zertifizierung:

Calibration certificate(cost additional)

Packaging Details:

Plywood

Produkt-Beschreibung

Single Station Relay Helium Test Equipment In Accordance With IEC 60255

Product Description

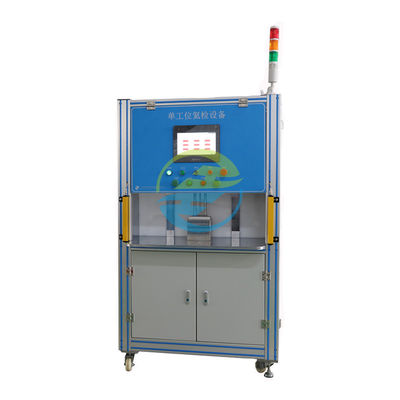

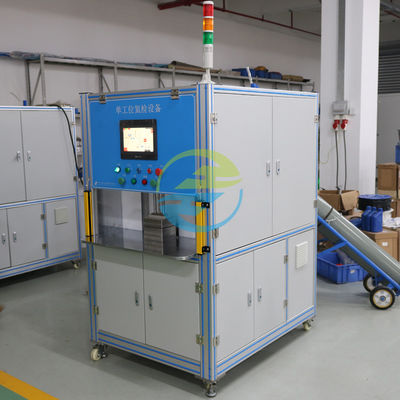

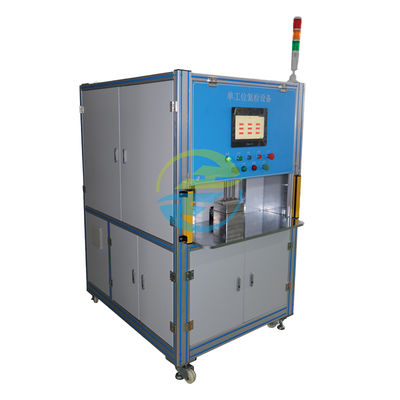

The HJ154 is a single-station test platform that integrates relay electrical testing and helium leak testing. It features a modular design and high-precision output voltage (0–310 V) and current (3–30 A) systems, enabling real-time monitoring of relay performance and leak status. Its user interface is simple and user-friendly.

Product Applications
The HJ154 reliably tests relay electrical parameters (including operate/bounce time, coil current, and resistance), and verifies relay leaks using a helium leak test module. It is widely used in inspection and laboratory environments within power systems, manufacturing plants, substations, and relay manufacturers.

Single Station Relay Helium Test Equipment In Accordance With IEC 60255 0

Product Advantage
Single-station design: Space-saving and centralized operation, ideal for small batches and laboratory use.
Dual-function integration: Supports electrical testing and helium leak testing, streamlining the operation process.
High-precision control: Output voltage and current can be precisely adjusted, enabling highly reproducible testing.
Compliant with IEC 60255 standards: Ensures consistent test data and international compatibility. Easy-to-use touchscreen interface: Integrates streamlined menus and test wizards for seamless use.
Modular and expandable: Add more channels or integrate automated testing solutions in the future as needed.

International Reference Standards
The HJ154 is designed and tested in accordance with the following international standards to ensure the accuracy and reliability of its test results:
IEC 60255-1: "Standard General Requirements for Measuring Relays and Protection Equipment"
IEC 61000-4-5: "Surge Immunity Test" — Ensures device stability in environments with strong electromagnetic interference
ISO 3743 (reference standard): Acoustic measurement standard for measuring noise emissions during operation (non-core test item)

Technical Specifications

Parameter Category	Specification
Output Voltage	0–310 V (adjustable)
Output Current	3–30 A (adjustable, single channel)
Helium Detection Sensitivity	< 1×10⁻⁶ mbar·L/s
Maximum Power Output	~9.3 kW
Number of Channels	1 test channel (voltage + current)
Display	10.1" color touchscreen
Electromagnetic Compatibility	Compliant with IEC 61000-4-5 surge test
Functional Standard Compliance	IEC 60255 series
Noise Level	< 60 dB under standard operating conditions
Power Supply	AC 220 V ±10%, 50/60 Hz
Dimensions / Weight	550 × 450 × 350 mm / ~20 kg
