Test Finger Probe with 80mm Finger Length and 75mm Baffle Plate Diameter for Electrical Enclosure Testing Compliant with IEC 61032

Name: Test Finger Probe with 80mm Finger Length and 75mm Baffle Plate Diameter for Electrical Enclosure Testing Compliant with IEC 61032
Brand: Guangzhou HongCe Equipment Co., Ltd.
SKU: HT-I02
Price: 5,000.00 USD
Availability: InStock

Markenbezeichnung:	HongCe
Modellnummer:	HT-I02
MOQ:	1 Set
Preis:	Negotiatable
Zahlungsbedingungen:	T/t
Versorgungsfähigkeit:	30 Sätze pro Monat

Einzelheiten

Produkt-Beschreibung

Einzelheiten

Herkunftsort:

CHINA

Zertifizierung:

Calibration certificate(cost additional)

Farbe:

Weiß

Material:

Kunststoff + Edelstahl

Garantie:

1 Jahr

Anwendung:

Elektronischer Sicherheitsprüfer

OEM:

Standards:

Die in Absatz 1 Buchstabe b genannten Anforderungen gelten nicht für die in Absatz 1 Buchstabe b gen

Durchmesser der Baffelplatte:

75 mm

Fingerlänge:

80 mm

Verpackung Informationen:

Aluminiumbox

Hervorheben:

80mm Finger Length Test Finger Probe

75mm Baffle Plate Diameter Electrical Enclosure Test Probe

IEC 61032 Compliant IEC Test Finger

Produkt-Beschreibung

Professional Electrical Enclosure Contact Probe - Test Finger Probe Device

Compliant with IEC 61032/IEC 60529 standards, this precision test finger simulator evaluates enclosure accessibility for electrical equipment safety testing.

Product Introduction

The Electrical Enclosure Conformity Test Probe (Model: HT-I02) is a high-precision test finger probe designed specifically for accessibility testing of electrical equipment enclosures. It simulates human finger contact and is suitable for evaluating the safety protection capabilities of electrical enclosures, equipment panels, sockets, and industrial cabinets.

This tool helps manufacturers quickly and reliably meet international safety standards (IEC 61032, IEC 60529), improving testing efficiency while ensuring product safety compliance.

Compliance Standards

IEC 61032 figure 2, IEC60950 figure 2A, IEC60884, IEC60335, UL507, and UL1278 figure 8.4.

Key Features

Precision Finger Simulation: Conforms to IEC 61032 Figure 2 (Probe B) with exacting dimensions (80±0.2mm finger length, 75±0.2mm stop diameter)
Multi-Standard Compatibility: Valid for IEC 61032, IEC 60335-1, and IEC 60529 testing scenarios
Durable Construction: Corrosion-resistant stainless steel probe with insulated handle for laboratory and production line use
Ergonomic Operation: Intuitive design reduces operator complexity and improves testing efficiency
Customization Options: Available with push-pull interfaces and calibration certificates
Manufacturer Direct: Supports OEM/ODM customization with fast delivery
Reliable Results: Strict dimensional tolerances ensure repeatable, accurate testing

Technical Parameters

Model	HT-I02
Name	Standard Test Finger
Joint 1	30±0.2mm
Joint 2	60±0.2mm
Finger length	80±0.2mm
Fingertip to baffle	180±0.2mm
Cylindrical	R2±0.05mm
Spherical	R4±0.05mm
Fingertip cutting bevel angle	37°
Fingertip taper	14°
Test finger diameter	Ф12mm
A-A Section diameter	Ф50mm
A-A Section width	20±0.2mm
Baffle diameter	Ф75±0.2mm
Baffle thickness	5±0.5mm
Applied standard	IEC61032-1

Product Applications

Electrical Appliance Manufacturing: Safety testing for refrigerators, washing machines, air conditioners
Industrial Equipment Testing: Verification of industrial machinery and electrical panel safety
Quality Control: Compliance verification with international safety standards
Laboratory Testing: Electrical safety research and certification testing

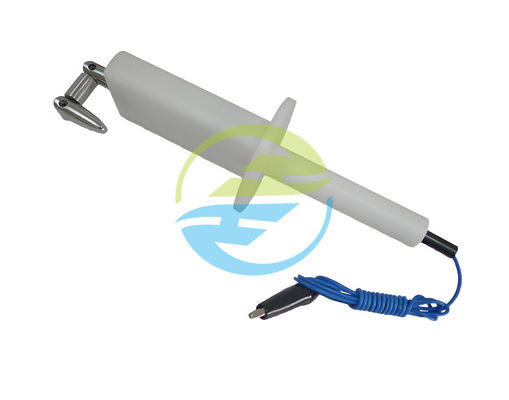

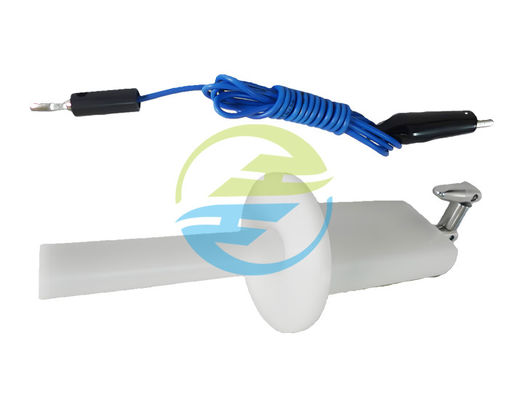

Product Images

Testing Checklist

Verify housing openings prevent finger access to live parts
Confirm equipment design prevents accidental contact with live/moving parts during normal use
Check cabinet/panel gaps and evaluate need for additional protective structures

Test Finger Probe HT-I02: Frequently Asked Questions

Q1: What does the HT-I02 test finger probe do?

A1: The HT-I02 evaluates whether fingers can access electrical components within equipment enclosures, ensuring product safety compliance.

Q2: Does it meet international standards?

A2: Yes, the HT-I02 complies with IEC 61032 standards, ensuring accurate and recognized testing results.

Q3: How durable is the test finger probe?

A3: Constructed with premium materials, the HT-I02 withstands repeated use in demanding testing environments.

Q4: What types of electrical equipment can it test?

A4: The probe is suitable for testing various electrical products including appliances, industrial equipment, and control panels.

Q5: How user-friendly is the probe?

A5: The ergonomic design ensures comfortable handling and intuitive operation, even for new users.
