High-Accuracy Impact Testing Machine for IEC & GB Standards with 192KHZ Sampling Frequency Shock Test System

Markenbezeichnung:	HongCe
Modellnummer:	HC-G829
MOQ:	1 Satz
Preis:	Negotiatable
Zahlungsbedingungen:	L/C, T/T
Versorgungsfähigkeit:	5 Sätze pro 1 Monat

Einzelheiten

Produkt-Beschreibung

Einzelheiten

Herkunftsort:

China

Zertifizierung:

Third party calibration certificate(cost additional)

Eingabekanäle:

2 Kanäle

Abtastfrequenz:

192 KHz

Schlagwellenform:

Halbe Sinus-Wellenform

Abmessungen:

1100MMx800MMx2500MM (anpassbar)

Gewicht:

1300 kg

Leistung:

1500W

Verpackung Informationen:

Sperrholz

Hervorheben:

High-Accuracy Impact Testing Machine

IEC & GB Standards Shock Test System

192KHZ Sampling Frequency Mechanical Shock Test Bench

Produkt-Beschreibung

Mechanical Impact Testing Machine for IEC & GB Standards

High-accuracy shock test system for components and assemblies with precise, repeatable impact waveforms for reliable product testing.

Product Introduction

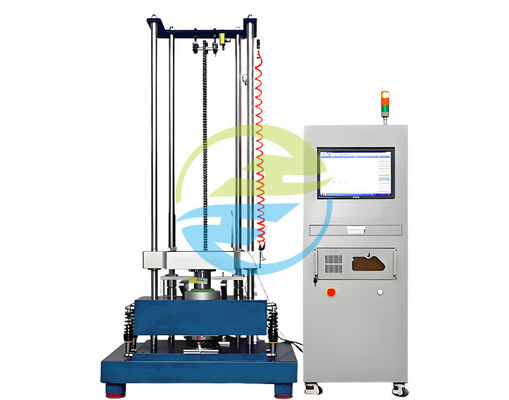

The Mechanical Shock Test Bench is a high-reliability testing device designed for electronic and electrical components, automotive parts, connectors, and industrial components. It realistically reproduces transient impact environments during transportation, installation, and use, helping manufacturers identify structural risks before mass production.

Product Features

Stable mechanical impact structure with high long-term operational reliability
Precisely adjustable impact parameters including acceleration, pulse duration, and impact count
High repeatability for reliable data in type testing and conformity verification
Modular fixture design adaptable to various sample sizes and shapes
Intuitive operation with low maintenance and training costs
Compliance with multiple international testing standards including IEC, GB, and EN

International Standards Compliance

IEC 60068-2-27: Environmental testing - Shock tests with half-sine shock waveform
IEC 60068-2-29: Environmental testing - Bump tests for repeated mechanical shocks
GB/T 2423.5: Environmental testing for electrical and electronic products - Shock test methods
EN 60068-2-27: European standard equivalent to IEC shock test requirements

Technical Parameters

Test Item	Parameters
Motor	750W Three-phase Asynchronous Motor
Control Method	Computer Control
Drop Method	Free Fall
Drop Height	0~1500MM
Work Surface	350X350MM
Work Surface Material	High-strength High-Quality Aluminum Alloy
Maximum Load	25KG
Peak Acceleration	20~1500G
Acceleration Sensor Range	+2500G
Pulse Duration	0.5~30MS

Product Structure Analysis

Frequently Asked Questions

What is the difference between a mechanical impact test bench and a drop test?

Mechanical impact testing emphasizes controllable impact waveforms and acceleration parameters, resulting in more accurate data and suitability for standardized testing.

Does the test bench support customized impact parameters?

Yes, parameters can be customized according to the test object and standard requirements.

Can it be used in third-party testing laboratories?

Yes, the equipment is designed to comply with IEC/GB standards and meets laboratory usage needs.

Is the equipment installation complex?

The structure is mature, installation is simple, and complete video guidance is provided.

For more information about this equipment, please contact us. We offer one-stop customized solutions and quotations, providing quality at customized prices. Welcome to contact us!
