Precision Small Test Pin Probe with Stainless Steel Tip and Ergonomic Nylon Handle for IEC 61032 Safety Compliance

Name: Precision Small Test Pin Probe with Stainless Steel Tip and Ergonomic Nylon Handle for IEC 61032 Safety Compliance
Brand: Guangzhou HongCe Equipment Co., Ltd.
SKU: HT-I30
Price: 5,000.00 USD
Availability: InStock

Markenbezeichnung:	HongCe
Modellnummer:	HT-I30
MOQ:	1 Satz
Preis:	Negotiatable
Zahlungsbedingungen:	T/T, L/C
Versorgungsfähigkeit:	200 Sätze/Monat

Einzelheiten

Produkt-Beschreibung

Einzelheiten

Herkunftsort:

China

Zertifizierung:

TUV、ITS、CSA、BV、SGS 、CNAS(cost additional)

Verpackung Informationen:

Aluminiumbox

Hervorheben:

Precision Small Test Pin Probe

Stainless Steel Electrical Accessibility Probe

Ergonomic Nylon Handle Safety Compliance Probe

Produkt-Beschreibung

Precision Small Test Pin Probe for IEC 61032 Figure 9 Safety Compliance – Stainless Steel Electrical Accessibility Probe with Ergonomic Nylon Handle for Household Appliance Testing

At HongCe, we craft more than just equipment; we create confidence. You'll find our Nylon Handle Steel Test Probe in top-notch testing labs and quality control spots around the world. Our HT-I30 (Small Test Pin) is built to mimic kids' fingers poking around inside appliances and gadgets, checking for danger. Since we make these ourselves, you get top-quality, safety-standard testing tools straight from the factory, without extra costs. Every probe shows our dedication to doing great work, so you can be sure your products are safe for everyone.

International Standards & Compliance

IEC 61032:1997: Protection of persons and equipment by enclosures - Probes for verification (Figure 9, Test Probe 13)
IEC 60335-1: Safety of household and similar electrical appliances
IEC 60950: Safety of information technology equipment
IEC 60529: Degrees of protection provided by enclosures (IP Code)
IEC 60065: Audio, video, and similar electronic apparatus – Safety requirements

Product Features

Precision Engineering: CNC-machined probe tip ensures exact adherence to IEC dimensions
Superior Materials: Features a hardened stainless steel pin to prevent bending and a high-insulation nylon handle for safe, comfortable operation
Ergonomic Design: The lightweight, non-slip handle is designed for long hours of repetitive testing without hand fatigue

Technical Specifications

Parameter	Specification
Model	HT-I30 (BS probe, rounded tip)
Probe diameter	Ф1
Insulating material diameter	Ф8
Handle diameter	Ф20
Probe length	20
Insulating material length	30 ± 0.2 mm
Handle length	50 ± 1 mm

Test Applications

Household electrical appliances
Power tools
IT and AV equipment
Lighting products
Industrial control devices
Chargers, adapters, and power supplies

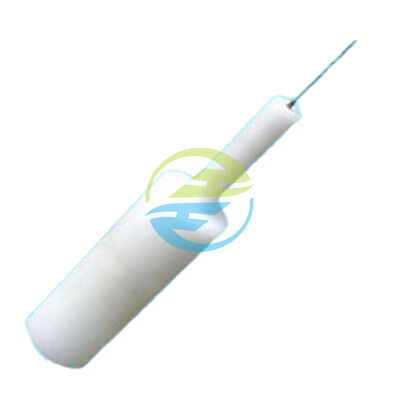

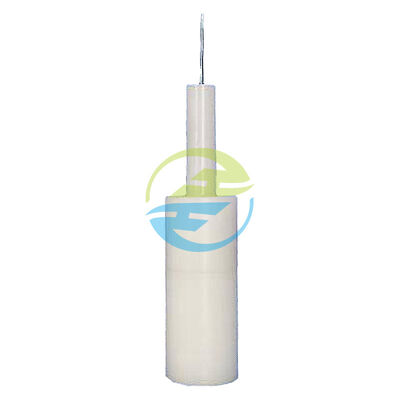

Product Image
