Plug Socket Tester for 30A 300V Making & Breaking Capacity and Normal Operation Load Testing Equipment

Name: Plug Socket Tester for 30A 300V Making & Breaking Capacity and Normal Operation Load Testing Equipment
Brand: Guangzhou HongCe Equipment Co., Ltd.
SKU: HC9915
Price: 5,000.00 USD
Availability: InStock

Markenbezeichnung:	HongCe
Modellnummer:	HC9915
MOQ:	1 Satz
Preis:	Verhandlungsfähig
Zahlungsbedingungen:	T/T
Versorgungsfähigkeit:	10 Sätze pro Monat

Einzelheiten

Produkt-Beschreibung

Einzelheiten

Herkunftsort:

China

Zertifizierung:

Calibration certificate(cost additional)

Stromversorgung:

Einphasen 220V, 50HZ

Station:

Einzelstation (anpassbar)

Lasts-Methode:

Ohmsche, induktive und kapazitive Last

Kapazitäts-Last:

70uf, 140uf, 7.3uf

Tragfähigkeit:

10kVA

Name:

Lastbank

Garantie:

1 Jahr

Standard:

IEC 60669-1, IEC 60884-1 usw.

Verpackung Informationen:

Sperrholz

Produkt-Beschreibung

Plug Socket Tester for 30A 300V Making & Breaking Capacity and Normal Operation Load Testing Equipment

Product Description

The HC9915 Plug Socket Tester is a professionally engineered single-station power load cabinet designed for making and breaking capacity testing, normal operation testing, and load endurance verification of plugs, sockets, couplers, and similar electrical accessories. Manufactured directly by HongCe, this equipment helps laboratories, quality inspection departments, and manufacturers improve product reliability, safety consistency, and international compliance efficiency.

Built for long-term industrial operation, the HC9915 combines stable load control, accurate current and voltage adjustment, and user-friendly operation in one compact testing solution. It is widely used in plug socket testing laboratories, appliance manufacturers, certification organizations, and production quality control environments.

International Reference Standard

Standard ClauseDescription

IEC 60884-1 Clause 20Making and breaking capacity of plugs and socket-outlets.

IEC 60884-1 Clause 21Normal operation of plugs and socket-outlets.

IEC 60669-1 Clause 18Making and breaking capacity of switches for household installations.

IEC 60669-1 Clause 19Normal operation of switches.

Why Choose HongCe Plug Socket Tester?

In electrical safety testing, unstable load output or inaccurate switching cycles can directly affect test reliability. The HC9915 is designed to deliver stable and repeatable performance under demanding testing conditions.

Technical Parameters

No	Item	Parameter
1	Power Supply	single-phase 220V, 50Hz.
2	Stations	single station(Customizable)
3	Digital voltage meter	Range 0 ~ 300V accuracy ± 05% ± 2d
4	Digital ampere meter	Range 0 ~ 30A accuracy ± 05% ± 2d
5	Digital power meter	Range 0～10KW, accuracy±05%
6	Digital power factor meter	0.3~0.98, accuracy: ±0.5%
7	Load method	Resistive, Inductive and Capacitive load three in one, Convertible
8	Capacity load	70uf, 140uf, 7.3uf can be chosen
9	Load output	Each power, Interval power can be chosen
10	Count/Preset	0～999999 times, can be preset Plug Socket Tester
11	Load capacity	10KVA
12	Max. of the output current	30A,when it exceeds 32A, it stopped automatically
13	Max. of the output voltage	300V, when it exceeds 305V, it stopped automatically
14	Working environment	80~106kpa, 5~40℃, (20~90)%RH
15	Using place	No violent shaking, without electromagnetic interference and dust, no explosive or corrosive gas.
16	Dimensions and weight	LWH= 7607001700mm, 276kg

Product Features

Single-station independent load testing design
Suitable for high-current plug and socket testing
Supports making and breaking capacity tests
Supports normal operation endurance tests
Stable resistive load output
Accurate voltage and current adjustment

Core Technologies

Stable Resistive Load Control
Precision Voltage & Current Adjustment
Industrial Durability Design
Safety Protection System

FAQ

1. What standards does the HC9915 comply with?

The equipment is mainly designed according to IEC 60884-1 related clauses for making and breaking capacity and normal operation testing.

2. What products can be tested?

It can test plugs, socket-outlets, extension sockets, appliance couplers, and similar electrical accessories.

3. Is the current adjustable?

Yes. The testing current can be adjusted up to 30A according to testing requirements.

4. Does the equipment support continuous testing?

Yes. The HC9915 is designed for continuous laboratory testing applications.

5. Can HongCe provide technical support?

Yes. HongCe provides professional pre-sales guidance, operation assistance, and after-sales technical support.

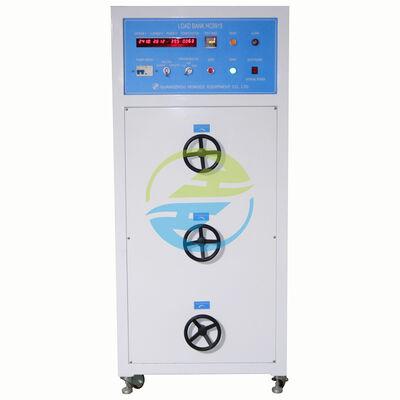

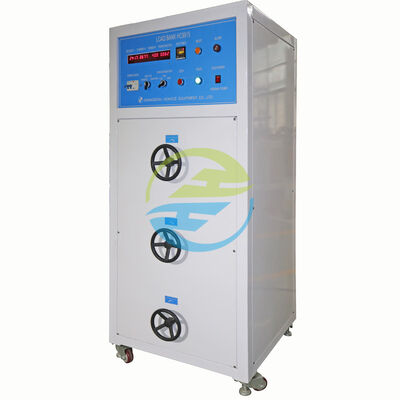

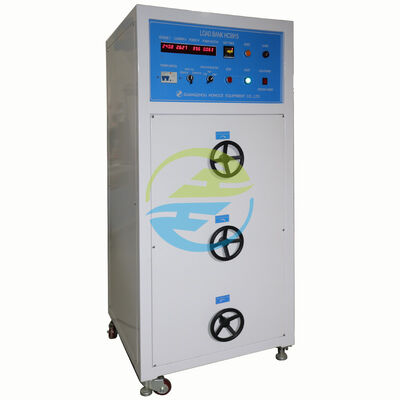

Picture for reference:

Plug Socket Tester for 30A 300V Making & Breaking Capacity and Normal Operation Load Testing Equipment 0
