IEC 60745 Electric Hammer Durability Impact Testing Machine for Handheld Power Tools up to 2.5kW | PLC Touch Screen Impact Test System

IEC 60745 Electric Hammer Durability Impact Testing Machine for Handheld Power Tools up to 2.5kW | PLC Touch Screen Impact Test System

Markenbezeichnung:	HongCe
Modellnummer:	HDD8303
MOQ:	1 Satz
Preis:	Negotiatable
Zahlungsbedingungen:	T/T, L/C
Versorgungsfähigkeit:	10 Sätze pro Monat

Einzelheiten

Produkt-Beschreibung

Einzelheiten

Herkunftsort:

China

Zertifizierung:

Calibration Certificate (cost additional)

Luftquelle:

Stange 5~8

Drehwinkel im Leerlauf:

0°, 90°, 180°

Lastsspannung:

0-250V justierbar

Prüfzyklus:

0-999999

Stahlkugel:

Φ38mm

Stromversorgung:

220 V/60 Hz

Leerlaufdrehzahl:

0-360°/s, voreingestellt

Auflagedruck:

100,125,150,175,200,250,300,350,400N voreingestellt

Verpackung Informationen:

Sperrholz

Produkt-Beschreibung

IEC 60745 Electric Hammer Durability Impact Testing Machine for Handheld Power Tools up to 2.5kW | PLC Touch Screen Impact Test System

Product Description

The Electric Hammer Durability Impact Testing Machine is designed for durability and performance evaluation of handheld motor-operated electric tools with power ratings up to 2.5kW. Developed in accordance with IEC 60745-2-1 and IEC 60745-2-6 requirements, the system simulates real operating conditions to assess the mechanical reliability and continuous operating performance of electric hammers, rotary hammers, impact drills, and similar power tools.

Product Features

PLC Intelligent Control

Mitsubishi PLC control system

7-inch Touch Screen

Easy operation and parameter setting

IEC Standard Compliant

Designed according to IEC 60745 requirements

Adjustable Load Voltage

0-250V adjustable

Multi-Angle Testing

Supports 0°, 90°, and 180° positioning

Programmable Test Cycles

Customizable operation and rest cycles

Pneumatic Loading System

Stable and precise axial force application

Modular Steel Base Design

Durable and highly stable structure

Long Duration Testing

Supports durability testing up to 9999 hours

Multiple Impact Heads

Suitable for different testing requirements

International Reference Standards

IEC 60745-2-1

Particular requirements for drills and impact drills.

Relevant Test Requirement:

Clause 17 – Endurance Test

IEC 60745-2-6

Particular requirements for hammers.

Relevant Test Requirement:

Clause 17 – Endurance Test
Figure 103 – Hammer Durability Test Apparatus Configuration

The equipment is designed and manufactured in strict accordance with the above IEC requirements.

Specifications

No.	Item	Specifications
1	Power supply	220V/60Hz
2	Air source	5~8 bar
3	Electrical control	MITSUBISHI PLC, 7 Inch Touch screen
4	Load voltage	0-250V adjustable, current display
5	No-load rotation angle	0°,90°,180°, can manual control clockwise or counter clockwise
6	No-load rotation rate	0-360°/s, preset
7	Power on time	0-999.9s, preset
8	Power off time	0-999.9s, preset
9	Test time	0-9999h, preset
10	Total test time	0-9999h, preset
11	Interval time	0-9999min, preset
12	Load pressure	100,125,150,175,200,250,300,350,400N preset
13	Impact head	0.7,1.4,2.3,3.4kg (include the connect handle), use according to table 101
14	Steel ball	Φ38mm
15	Steel plate	100,140,180,220mm, use according to table 101
16	Rubber plate	A set of 4, Matching with steel plate and steel base
17	Steel base	base weight 90kg, equipped with 9 pcs 30kg weights
18	Dimension	Control cabinet 604075cm, about 100kg; Test rack 4040200cm, about 390kg

Core Technologies

Mitsubishi PLC intelligent control technology
IEC-compliant impact durability testing design
Pneumatic loading technology
Automatic angle positioning system
Adjustable voltage loading technology
High stability steel base structure

Applications

Electric Hammer Manufacturers
Power Tool Manufacturers
Certification Laboratories
Third-party Testing Laboratories
Quality Inspection Organizations

Test Samples

Electric Hammers
Rotary Hammers
Impact Drills
Electric Drills
Handheld Motor-operated Electric Tools
Professional Power Tools below 2.5kW

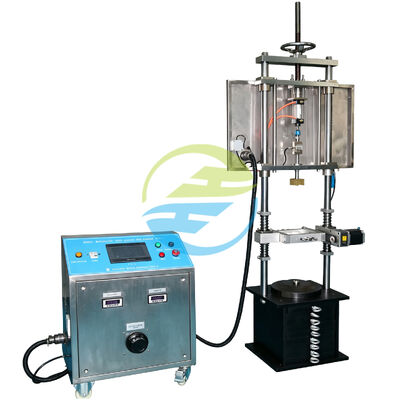

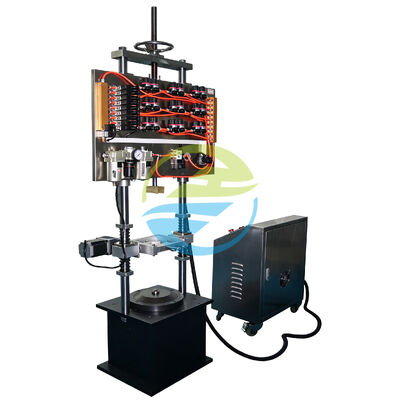

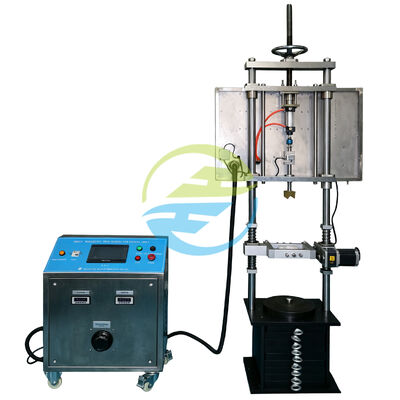

Detailed images

IEC 60745 Electric Hammer Durability Impact Testing Machine for Handheld Power Tools up to 2.5kW | PLC Touch Screen Impact Test System

FAQ

Q1. Which standards does this tester comply with?

IEC 60745-2-1 and IEC 60745-2-6.

Q2. What products can be tested?

Electric hammers, impact drills, rotary hammers, and handheld power tools under 2.5kW.

Q3. Can the voltage be adjusted?

Yes. The load voltage is adjustable from 0-250V.

Q4. Is angle positioning automatic?

Yes. The system supports automatic angle positioning.

Q5. Is customization available?

Yes. HongCe provides customized IEC testing solutions.

Why Choose HongCe?

HongCe is a professional manufacturer of IEC Test Equipment with extensive experience in designing and manufacturing testing solutions for household appliances, power tools, batteries, plugs & sockets, IP testing systems, and environmental testing equipment.
