Oxygen Bomb Aging Tester for Rubber & Polymer Materials | High-Pressure Thermal Aging Equipment | IEC Test Equipment Manufacturer

Markenbezeichnung:	HongCe
Modellnummer:	HJ0606
MOQ:	1 Satz
Preis:	Verhandlungsfähig
Zahlungsbedingungen:	T/T, L/C
Versorgungsfähigkeit:	10 Sätze pro Monat

Einzelheiten

Produkt-Beschreibung

Einzelheiten

Herkunftsort:

China

Zertifizierung:

Calibration certificate(cost additional)

Name:

Sauerstoffbombe (Luftbombe) Alterungstester

Standard:

Einheitliche Prüfstelle

Garantie:

1 Jahr

Maximaler Betriebsdruck:

4MP

Temperaturwarnsignal:

0 ∼ 200 °C Einstellbar

Temperaturabweichung:

±0,5℃

Sicherer Sprengdruck:

2.7~3.3MP

Eingangsleistung:

230 V/50 Hz

Verpackung Informationen:

Sperrholz

Hervorheben:

Oxygen bomb aging tester for rubber

High-pressure thermal aging equipment

IEC test equipment for polymers

Produkt-Beschreibung

Oxygen Bomb Aging Tester for Rubber & Polymer Materials

Material aging significantly impacts product safety, reliability, and longevity. The Oxygen Bomb Aging Tester accelerates the aging process by exposing samples to high-pressure oxygen or compressed air at elevated temperatures, enabling engineers and quality teams to predict material behavior in real-world conditions.

Manufactured by HongCe, this tester features a durable pressure vessel, precise temperature control, and strict compliance with IEC and ISO standards. It delivers reliable data for raw material verification, formulation refinement, and long-term product safety assurance.

International Reference Standards

IEC 60335-1 Household and similar electrical appliances – Safety – Part 1: General requirements Clause 22.32

IEC 60811-1-1 sub clause 9.1 and IEC 60811-1-2 sub clause 8.3

Product Features

High-strength stainless steel pressure vessel for long-term safe operation
Precise temperature control ensures stable and repeatable aging conditions
Supports both oxygen and compressed air aging tests
Uniform heat distribution for consistent specimen exposure
Automatic pressure monitoring with safety protection system

Test Specimens

Vulcanized rubber
Thermoplastic rubber (TPR, TPE)
Silicone rubber
Polyethylene (PE)
Polypropylene (PP)
PVC insulation materials
Cable jackets and sheaths
Sealing rings and gaskets
Polymer composite materials

Technical Parameters

Parameter	Specification
Input Power	230V/50HZ
Secure Burst Pressure	2.7～3.3MP
Temperature-controlled range	indoor temperature～200℃
Outer Chamber Dimensions	820mm420mm670mm
Inside Chamber Dimensions	Diameter 123*Height 337mm
Inside Chamber Volume	4000cm³
Heating Power	2.5KW
Temperature Alarm	0～200℃ Adjustable
Temperature deviation	±0.5℃
Temperature Control	Intelligent control
Temperature Display	Thermometer display
Material	Inside chamber is made of stainless steel and outer chamber is made of electrostatic spraying steel plate

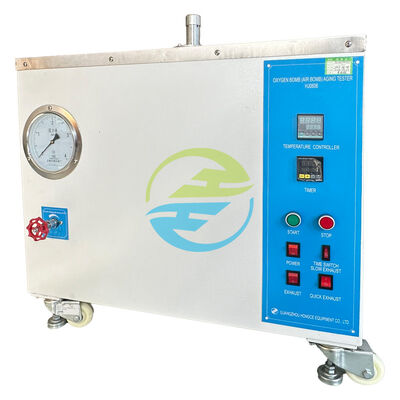

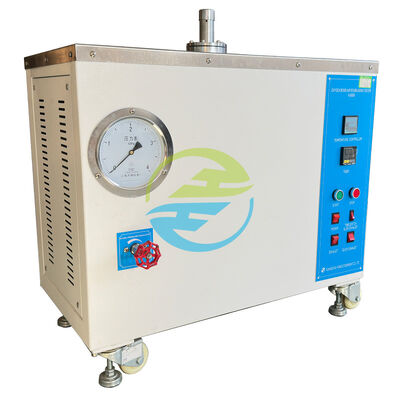

Product Photos

Frequently Asked Questions

Q1: Can this tester use air instead of oxygen?

Yes, the system supports both oxygen and compressed air aging tests.

Q2: Is the pressure vessel safe for long-term operation?

Absolutely. The pressure vessel is made from high-strength stainless steel and equipped with multiple safety protections.

Q3: Can test parameters be customized?

Yes, temperature range, pressure range, and sample capacity can be customized based on your testing requirements.

Q4: Is this equipment suitable for cable testing?

Yes, it is widely used for cable insulation and sheath aging tests according to IEC standards.

Q5: Do you provide calibration or standard verification?

Yes, calibration guidance and compliance documentation can be provided upon request.

Why Choose HongCe?

HongCe is not a trading company—we are a direct manufacturer specializing in IEC test equipment
In-house design & machining
Strict quality inspection before delivery
Customization support based on standards or samples
Stable supply for long-term projects
Exported to laboratories and manufacturers worldwide
We understand testing standards because we build equipment for compliance, not just for appearance
