Salt Spray Test Chamber for Corrosion Resistance Testing | ASTM B117 / IEC 60068 / ISO 9227 | Programmable IEC Test Equipment with Temperature Control

Salt Spray Test Chamber for Corrosion Resistance Testing | ASTM B117 / IEC 60068 / ISO 9227 | Programmable IEC Test Equipment with Temperature Control

Markenbezeichnung:	HongCe
Modellnummer:	HH0813
MOQ:	1 Satz
Preis:	Verhandlungsfähig
Zahlungsbedingungen:	L/C, T/T
Versorgungsfähigkeit:	10 Sätze pro Monat

Einzelheiten

Produkt-Beschreibung

Einzelheiten

Herkunftsort:

China

Zertifizierung:

Calibration certificate(cost additional)

Stromversorgung:

120 V, 50 Hz

Salzwassertemperatur:

35℃±1℃ 50℃±1℃

Druckluftdruck:

10,00±0,01kgf/cm2

Entsprechen Sie den Standards:

JIS, ASTM, CNS

pH-Wert der Säure:

6.5 bis 7.2 bis 3.0 bis 3.2

Relative Luftfeuchtigkeit der Prüfkammer:

>85 %

Verpackung Informationen:

Sperrholz

Hervorheben:

Salt spray test chamber ASTM B117

Programmable corrosion test chamber

IEC test equipment temperature control

Produkt-Beschreibung

Salt Spray Test Chamber for Corrosion Resistance Testing

Programmable IEC test equipment with temperature control compliant with ASTM B117, IEC 60068, and ISO 9227 standards.

Product Overview

Corrosion from coastal air, road salt, pollution, and humidity can significantly reduce product lifespan. HongCe salt spray test chambers help protect your product quality and reputation by creating controlled, consistent corrosive environments to identify potential issues before products reach the market.

As a manufacturer of IEC test equipment, HongCe provides custom configurations, fast delivery, and ongoing technical support. Trusted by laboratories, R&D centers, and inspection teams worldwide.

Key Features

Uniform salt fog distribution for accurate, repeatable test results
Stable temperature control for long-duration corrosion testing
Acid-resistant chamber structure with extended service life
Programmable control system with real-time monitoring
Transparent observation window for test visibility
Easy operation and maintenance for daily laboratory use
Supports NSS, AASS, and CASS corrosion tests
Designed and manufactured by HongCe (source factory)

Technical Specifications

Model	HH0813	HH0813A	HH0813B	HH0813C	HH0813D
Inner chamber size (mm)	600450400	900600500	1200800600	1600800600	2000800600
Outer chamber size (mm)	10706001180	14108801280	190011801600	230011801500	270011801600
Test chamber capacity	108L	270L	480L	800L	1440L
Salt water tank capacity	15L	25L	40L	40L	40L

Test Chamber Temperature: Salt water test method (NSS ACSS) 35℃±1℃ / Corrosion resistance test method (CASS) 50℃±1℃

Pressure Barrel Temperature: Salt water test method (NSS ACSS) 47℃±1℃ / Corrosion resistance test method (CASS) 63℃±1℃

Salt Water Temperature: 35℃±1℃ / 50℃±1℃

Salt Concentration: Sodium Chloride Solution concentration of 5% or add 0.26g of copper chloride (CuCl2 2H2O) per every liter of the Sodium Chloride Solution in the concentration of 5%

Compressed Air Pressure: 1.00±0.01kgf/cm²

Spray Amount: 1.0~2.0ml/80cm²/h (collecting at least for 16 hours, take the average)

Relative Humidity: More than 85%

Acid Value pH: 6.5~7.2 / 3.0~3.2

Spray Mode: Programmable spray (including continuous spray and intermittent spray)

Meet Standards: JIS, ASTM, CNS

Power Supply: 120V, 60Hz

International Reference Standards

IEC 60068-2-11 - Environmental testing - Part 2-11: Tests - Test Ka: Salt mist
IEC 60068-2-52 - Environmental testing - Salt mist, cyclic test
ASTM B117 - Standard Practice for Operating Salt Spray (Fog) Apparatus
ISO 9227 - Corrosion tests in artificial atmospheres - Salt spray tests
GB/T 10125 - Corrosion tests in artificial atmospheres - Salt spray tests
JIS Z 2371 - Methods of salt spray testing

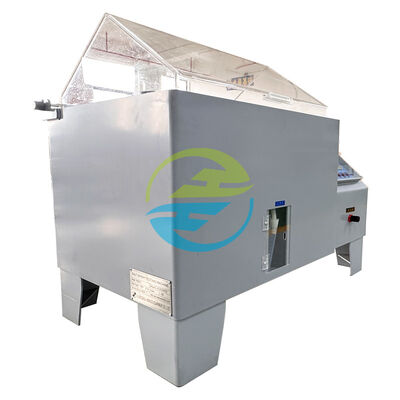

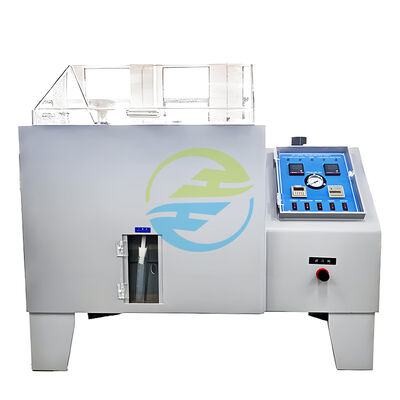

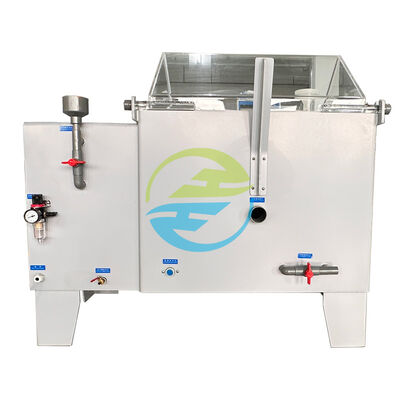

Product Images

Frequently Asked Questions

Q1: Can this chamber meet ASTM B117 requirements?

Yes. It is designed and calibrated according to ASTM B117 and IEC 60068 test requirements.

Q2: Can I customize chamber size and power supply?

Yes. HongCe supports custom chamber dimensions, voltage, and control systems.

Q3: What technical support is available?

We provide operation manuals, video guidance, and remote technical support.

Q4: Can this equipment run continuously for long tests?

Yes. The chamber is designed for stable long-term operation.

Q5: How long is the delivery time?

Standard models ship within 7-15 working days. Custom orders depend on configuration.
